Truck & Bus Wash: SUNRISE W4000 / W4700
SUNRISE W4000 and W4700 heavy vehicle wash systems for buses and trucks: A1-grade steel construction, PLC control and an optional brushless Hydrowash.
Full specificationTrucks, buses and trailers
Wash systems for trucks, buses and trailers.

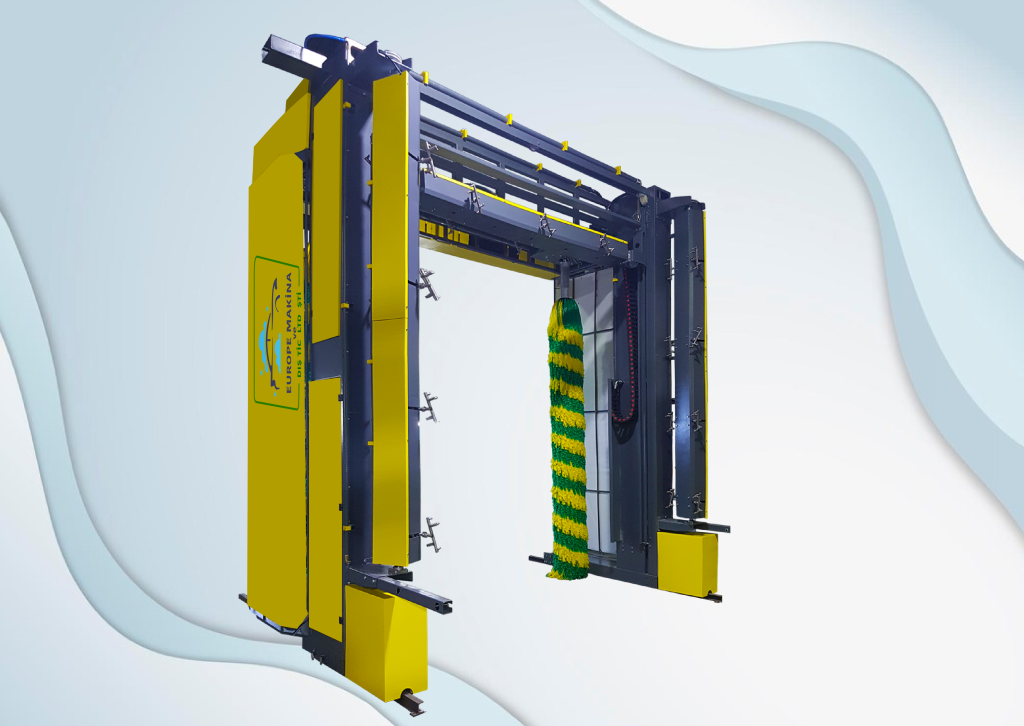

Roll-over wash systems for buses, coaches, rigid trucks, vans and trailers. The SUNRISE W4000 washes to 4.20 m high and 2.85 m wide, travelling on fixed vehicle rails, with chassis spray, PLC control and an optional brushless high-pressure Hydrowash for liveried vehicles.
Key features.
Wash envelope
W4000: 4.20 m high, 2.85 m wide, for buses, coaches, vans and trucks. Moving gantry on fixed vehicle rails, modular for optional equipment without extra footprint.
Brush or brushless
Horizontal and vertical brushes with pressure control, in PE plastic or soft brush. Optional Hydrowash washes without contact by high-pressure water robots.
Chassis wash
Dedicated chassis-spray nozzles for underbody washing.
Cold weather
Automatic push-button winter evacuation, triggered below +4°C, to prevent freezing in the lines.
Construction
A1 grade DKP steel with electrostatic powder coating. Hot-dip galvanization option for corrosion protection to international standards.
Control
PLC computer control with automatic programs per vehicle type, manual control option, and 24 VDC traffic-light indication at the bay.
System details.
The systems.
All models and specifications
Specifications.
Send us your site and we will confirm these against it.
Truck and bus wash systems
Two models sharing a chassis and a control system. The W4700 is the taller machine, for double-deck coaches and high-cube trailers.
| Specification | Unit | SUNRISE W4000 | SUNRISE W4700 |
|---|---|---|---|
| Maximum washing height | cm | 420 | 470 |
| Maximum washing width | cm | 285 | 285 |
| Machine width, excluding water shields | cm | 465 | 465 |
| Machine height | cm | 510 | 560 |
| Rail gauge | cm | 400 | 400 |
| Power installed | kW | 6 / 20 | 5.3 / 9 |
| Power installed, optional equipment | kW | 50 / 75 | 50 / 75 |
| Voltage | V | 380 | 380 |
| Frequency | Hz | 50 | 50 |
| Washing time per vehicle | min | 5 – 6 | 7 / 14 |
| Water pressure | bar | 3.5 – 4 | 3.5 – 4 |
| Water requirement | lt/min | 70 – 80 | 70 – 80 |
| Water requirement, optional equipment | lt/min | 250 | 250 |
| Air pressure | bar | 6 | 6 |
| Air requirement | lt/min | 15 | 15 |
| Electricity | kWh/vehicle | 0.12 – 0.15 | 0.12 – 0.15 |
| Shampoo | gr/vehicle | 10 – 20 | 10 – 20 |
| Brush units, vertical / horizontal | — | 2 + 1 | 2 + 1 |
Water shields add 14 cm to each side of the machine width.
Figures are for the standard build. Optional equipment, water recovery and cold-weather packages change the installed power and water requirement, and are quoted per site.
- Door to door shipping
- Free installation
- Six months warranty
What we need to quote it.
Send as much of this as you have. A partial answer is enough to start.
Send your details- 1 Vehicle types and the tallest and widest in the fleet
- 2 Vehicles per day, and the window they have to be washed in
- 3 Depot layout: drive-through or a bay the vehicle reverses into
- 4 Liveried or wrapped vehicles in the fleet
- 5 Water supply, drainage and whether recycling is required
