Ephesus
Ephesus three-brush rollover: Brush Swing system with two vertical and one horizontal brush, foam wash and full PLC control, 2 to 2.5 minutes per vehicle.
Request a quote
Specification.
- Category
- 3 brush rollover
- Throughput
- 2–2.5 min/vehicle (operation time)
- Brushes
- 2 vertical + 1 horizontal (Brush Swing system)
Source: europemakine.com product page.

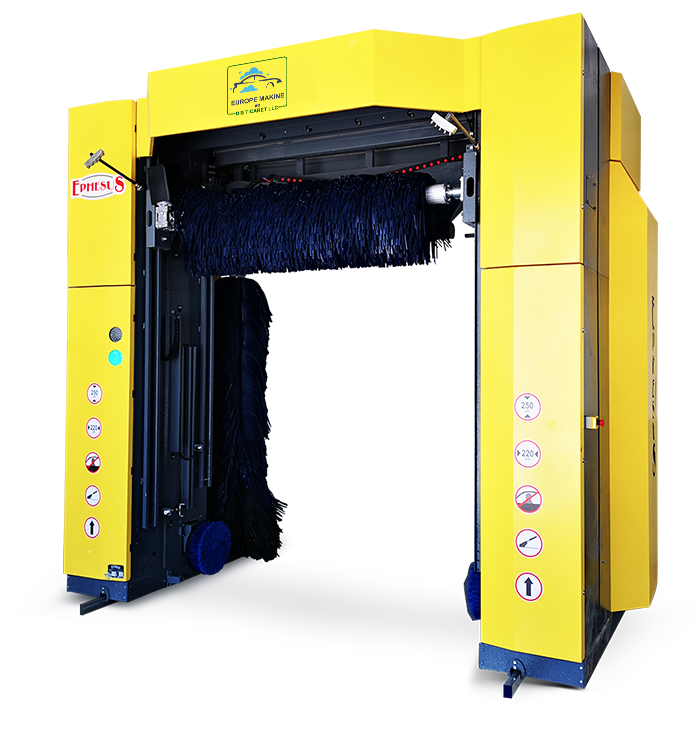

Equipped with a Brush Swing system. It is designed to effortlessly clean a wide range of vehicles, including passenger cars, vans, jeeps, and minibuses. This advanced machine features 2 vertical and 1 horizontal brush systems, and boasts the capability to foam vehicles during the washing process. All managed automatically under PLC computer control.
Specifications
| Spec | Unit | Value |
|---|---|---|
| Max. Machine Width | cm | 365 |
| Max. Machine Height | cm | 400 |
| Max. Washing Height | cm | 300 |
| Max. Washing Width | cm | 220 |
| Rail Gauge | cm | 300 |
| Rail Length | m | 10 |
| Power Installed | kW | 3 |
| Voltage / Frequency | V | 380 / 50Hz |
| Operation Time / Vehicle | min/vehicle | 2–2.5 |
| Water Pressure | bar | 3.5 |
| Water Consumption | lt/min | 60–80 |
| Air Pressure | bar | 6 |
| Air Requirement | lt/min | 56 |
| Electric Consumption | kWh/vehicle | 0.15 |
| Shampoo Consumption | gr/vehicle | ~10–20 |
| Brush Unit Vertical/Horizontal | – | 2+1 |
Standard accessories
- Digital Power Control (Print Control)
- Horizontal Brush System with Inverter System for speed adjustment
- Bridge execution motors
- Chemical Dosing pump for the Foam Laying System
- Pedestal operator panel
- Decorative polyester Side and Top Forehead Dressing
- Soft Start and Soft Stop
- Emergency stop button
Included with every machine
- Door to door shipping
- Free installation
- 6 months warranty
